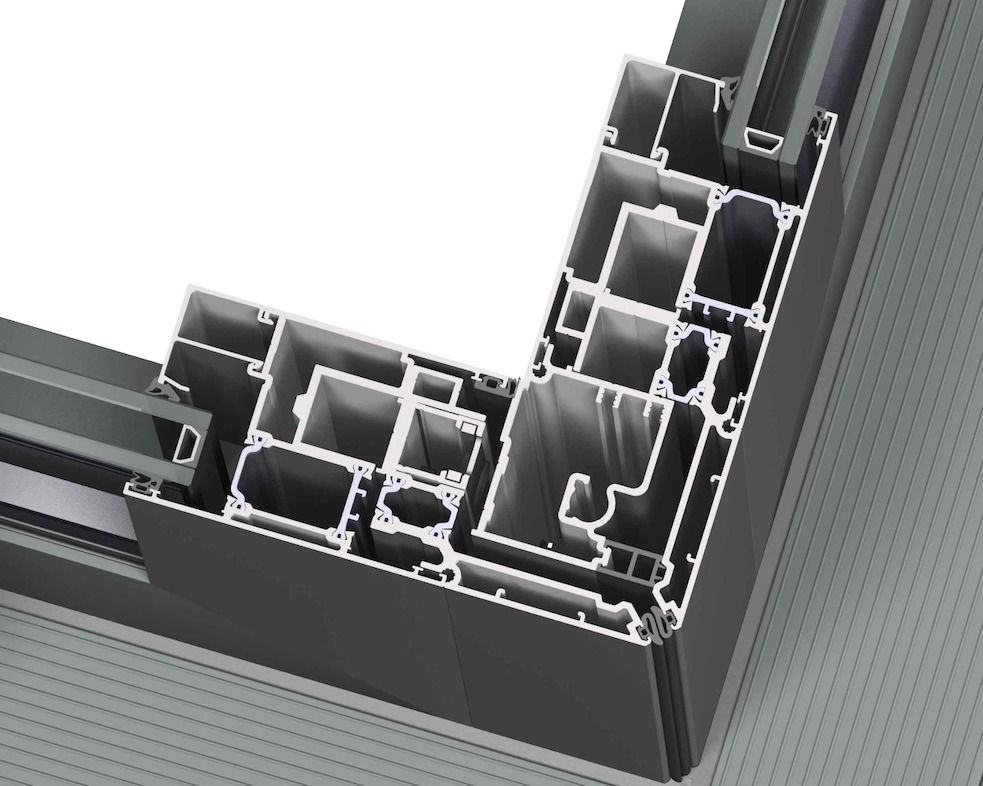

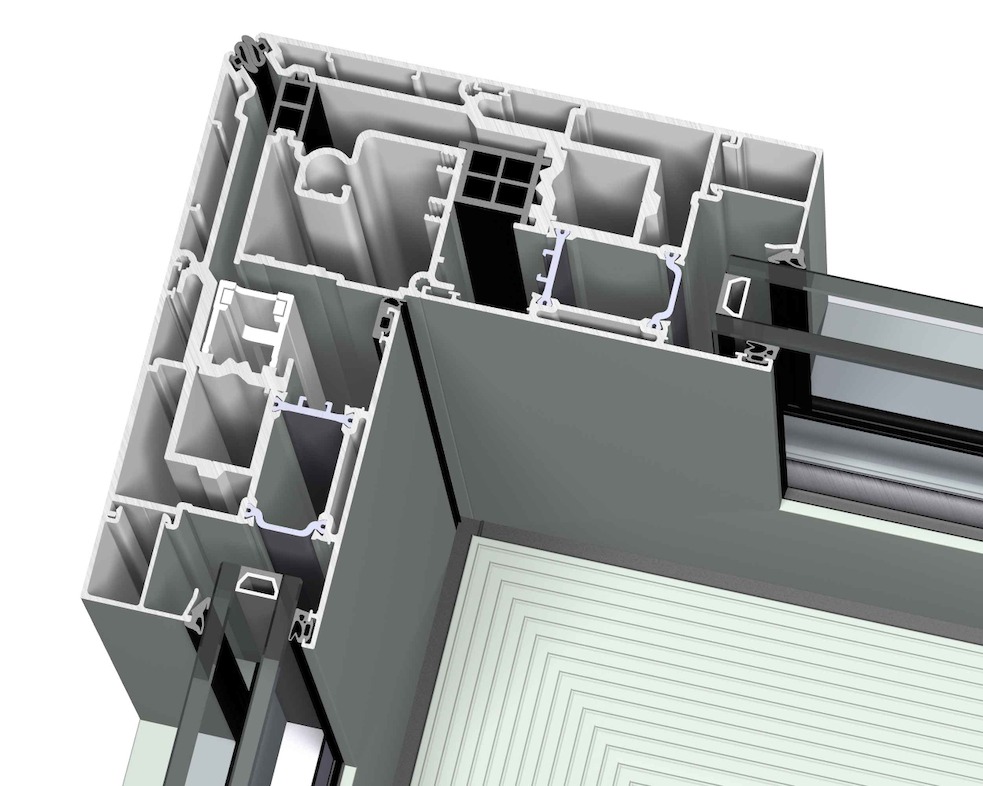

New configurations: corner solutions
Having ultimate flexibility between protecting against the outdoor climate and opening up at any moment is the key ingredient of contemporary living spaces. The CP 155-Lift & Slide corner solutions allow to open both in- and outward corners, without compromising the systems’ known benefits of comfort and insulation. A solution for fixed glass corners to provide optimal daylight and visibility completes the offer.

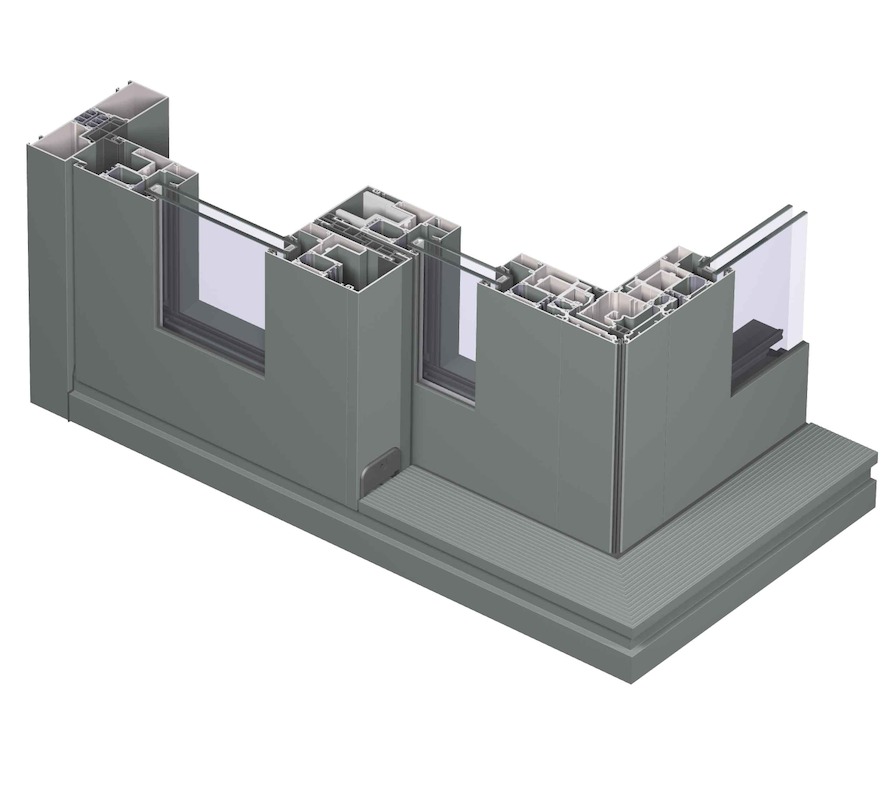

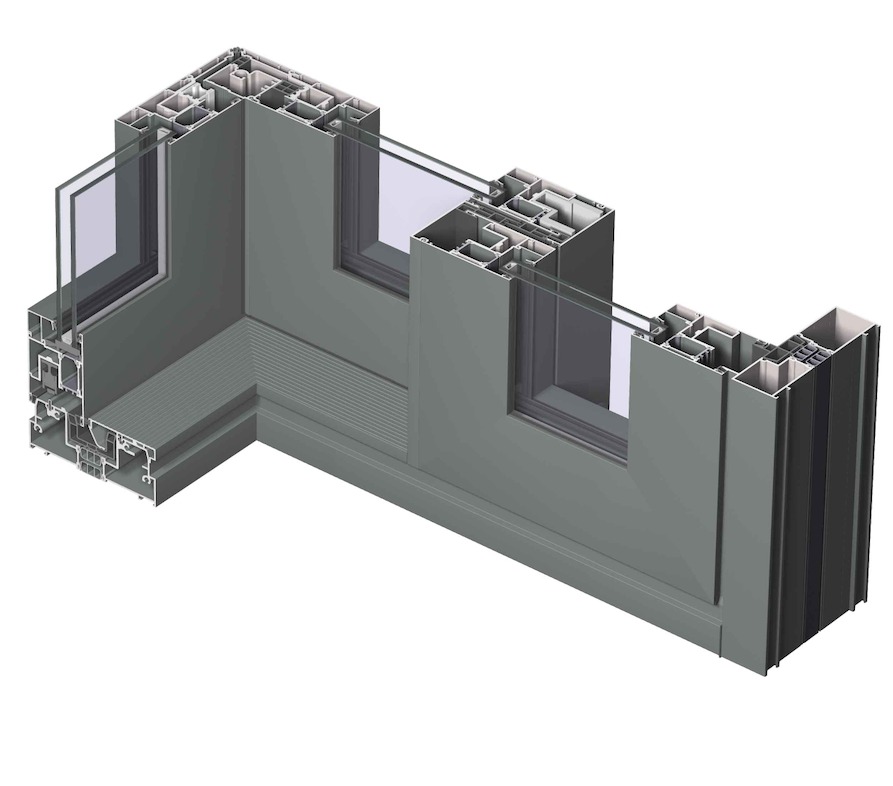

The open corner is applicable on CP 155-LS 2-rail and outside glazed monorail, achieving elevated performance classes for air- wind- and water tightness (3 – C2 – 7A) . The fixed glass corner can be applied on all CP 155-LS outside glazed monorails.
High weight and ultra large dimensions
High insulating triple glazing implies heavy weight glass panels. Next to that, living spaces want to benefit from excessive natural light. Reynaers responds to these needs by facilitating big and heavy glass panes in CP 155. CP 155 makes it possible to achieve large-sized elements with a height up to 3 metres and enormous widths thanks to extension pieces that enlarge the outer frame.
Most impressive are the fixed glass panes that are now allowed up to 1500 kg in the monorail versions. The outside glazing option eases installation on site of those enormous glass panes, even in high rise buildings. A burglar proof solution (class RC2) is available both on the inside and outside glazed versions. Furthermore, the CP 155 Lift & Slide version makes it easy to operate vents up to 400 kg.
General performances CP 155
Concept Patio® 155 is a premium insulated sliding system with elevated performances. The sophisticated concept fulfils the user's high expectations of optimum quality, high insulation and ease of operation.
Thanks to the "High Insulation" upgrade, the system can achieve superior levels down to 1,07 W/m²K (Uf-value). This results in a glazed element with insulation values lower than 1,0 W/m²K, allowing the CP 155-HI system, which is certified with a Minergie label, to be used for low energy buildings. Furthermore, the system is available with a low threshold that creates a perfect continuity between the indoor and outdoor spaces and improves the accessibility to the building. This accessibility and comfort is further improved by the solutions for automatic opening.
